Actual-model Example for Linear Dynamic Analysis¶

Analysis Model¶

For the linear dynamic analysis, the mechanical component shown in Figure 9.5.1 is used as the actual model. Four verification cases are defined for this actual model with different loading conditions and damping coefficients. Table 9.5.1 lists these cases.

Table 9.5.1 Verification cases using an actual model for linear dynamic analysis

Case	Element Type	Verification Model	Loading Condition	Damping	Number of Nodes	Degrees of Freedom
EX31A	342	Meshing model	Step load (F0)	None	15,214	45,642
EX31B	342		Step load (F0)	Applied	15,214	45,642
EX31C	342		Square-wave pulse (F1)	None	15,214	45,642
EX31D	342		Square-wave pulse (F1)	Applied	15,214	45,642

Meshing model

Figure 9.5.1 Meshing model

Analysis Results¶

Examples of the analysis results are shown in Figures 9.5.2 and 9.5.3.

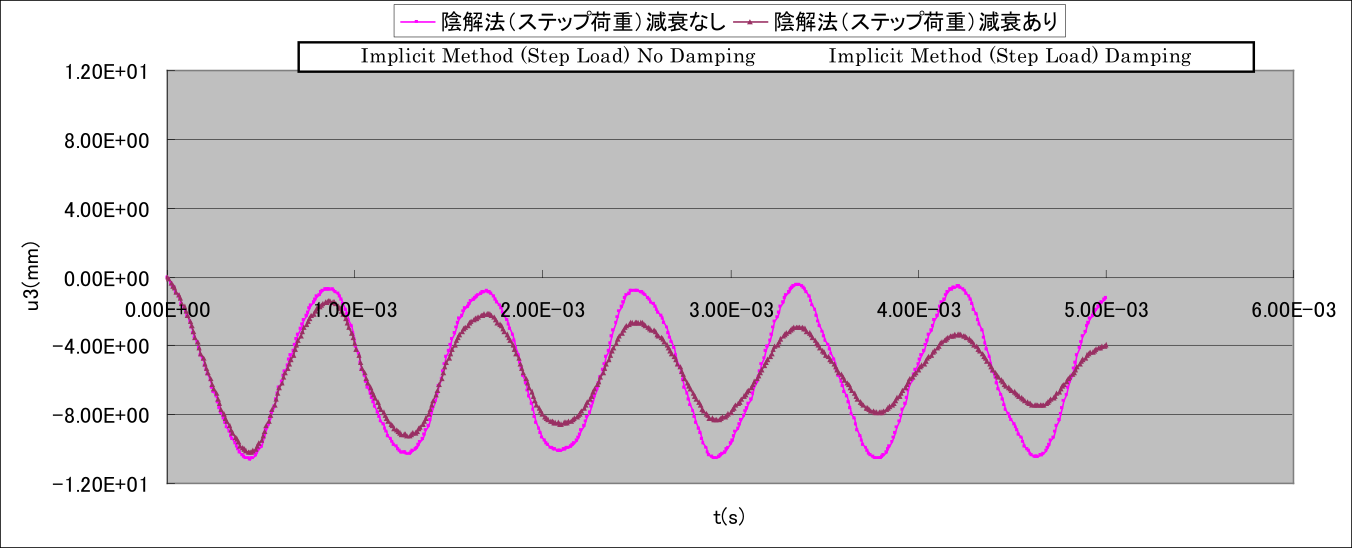

Time history of excitation-point displacement u~z~

Figure 9.5.2 Time history of excitation-point displacement u~z~

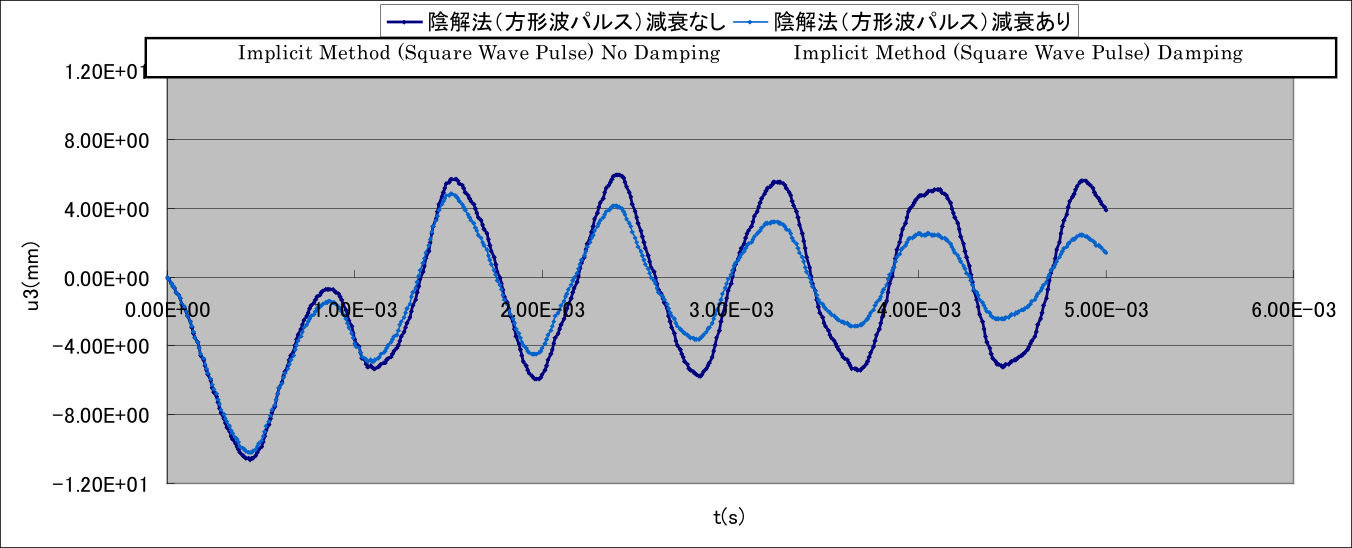

Deformed shape and equivalent stress distribution (deformation scale factor: 5.0): EX31C

Figure 9.5.3 Deformed shape and equivalent stress distribution (deformation scale factor: 5.0): EX31C
