Actual Model Examples for Heat Conduction Analysis¶
Analysis Model¶
For the heat conduction analysis, a spent nuclear fuel transport container is used as the actual model. For this actual model, three verification examples with different mesh resolutions are defined. The list is shown in Table 9.4.1. The model geometry is also shown in Figures 9.4.1 through 9.4.4.
Table 9.4.1 Actual model verification examples for heat conduction analysis
| Case name | Element type | Verification model | Number of nodes | Number of DOFs |
|---|---|---|---|---|
| EX21A | 361 | Spent nuclear fuel transport container | 88,938 | 79,920 |
| EX21B | 361 | 309,941 | 289,800 | |
| EX21C | 361 | 1,205,765 | 1,159,200 |
Figure 9.4.1 Spent nuclear fuel transport container
Figure 9.4.2 Dimensions of the spent nuclear fuel transport container
Figure 9.4.3 Schematic model diagram

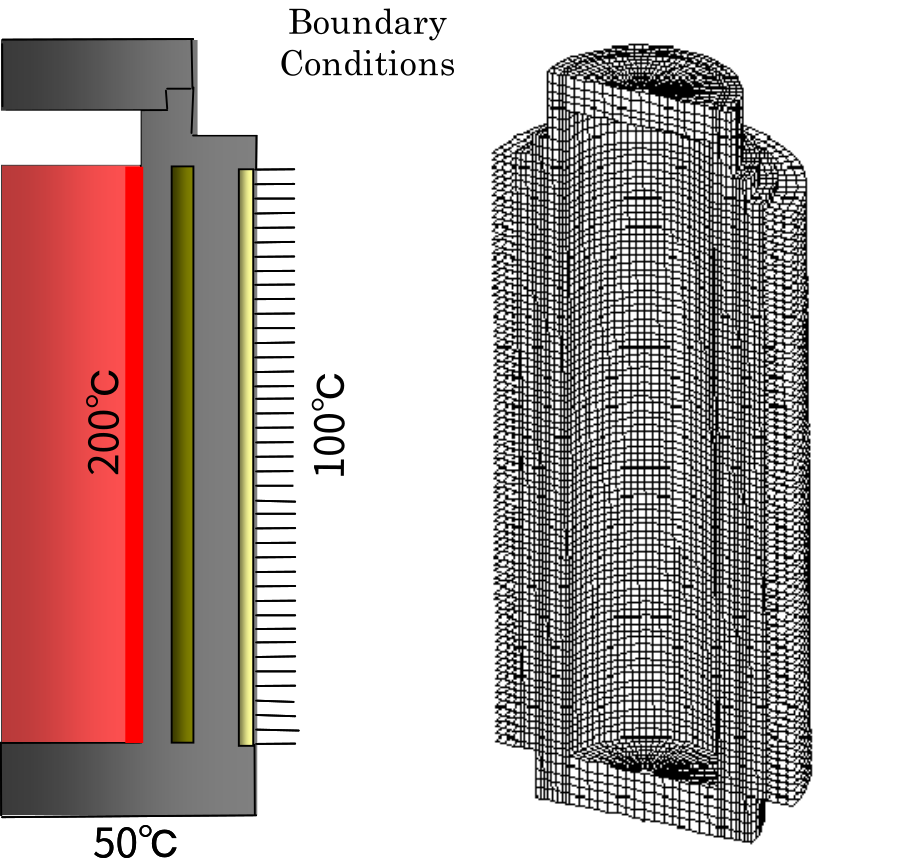

Figure 9.4.4 Model boundary conditions and mesh division (EX21A)
Analysis Results¶
Examples of the analysis results are shown in Figures 9.4.5 through 9.4.7.
Figure 9.4.5 Temperature distribution
Figure 9.4.6 Distributed model
Figure 9.4.7 Speedup due to distributed processing
