Nonlinear Static Analysis (Elastoplasticity, Part 2)¶
This analysis uses the data in tutorial/06_plastic_can.
Analysis Model¶
The analysis model is a half model of a container. The geometry is shown in Figure 4.6.1, and the mesh data are shown in Figure 4.6.2.
| Item | Description | Remarks | Reference |
|---|---|---|---|
| Analysis type | Nonlinear static analysis (elastoplastic) | !SOLUTION,TYPE=NLSTATIC | |
| Number of nodes | 14,119 | ||
| Number of elements | 7,236 | ||
| Element type | 10-node quadratic tetrahedral element | !ELEMENT,TYPE=342 | |
| Material property name | M1 | !MATERIAL,NAME=M1 | |
| Material properties | ELASTIC PLASTIC | !ELASTIC !PLASTIC,YIELD=DRACKER-PRAGER | |
| Boundary conditions | Restraint, distributed load | !DLOAD | |
| Matrix solver | CG/SSOR | !SOLVER,METHOD=CG,PRECOND=1 |
Figure 4.6.1 Container geometry

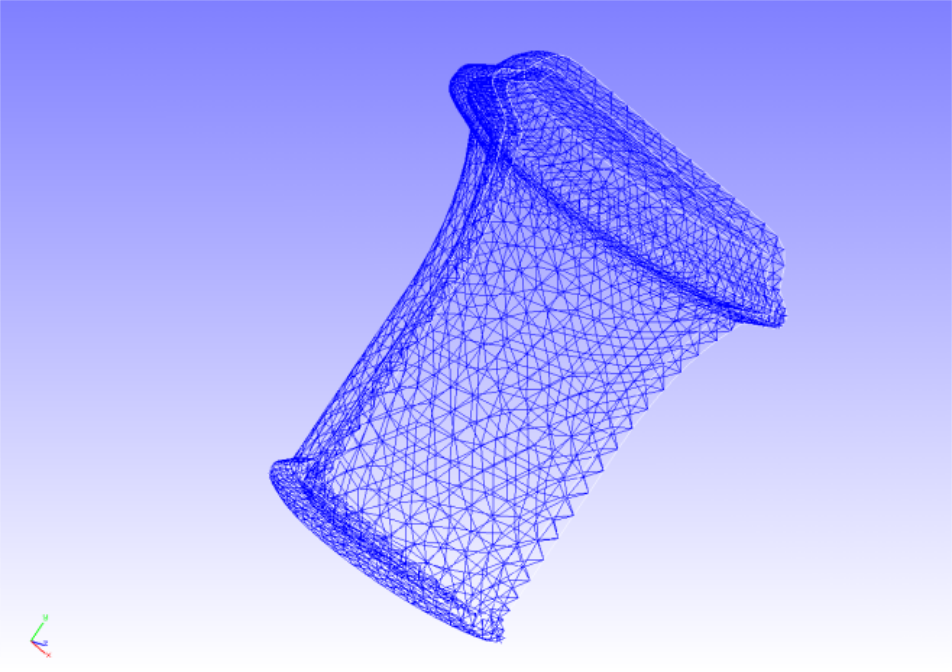

Figure 4.6.2 Container mesh data
Analysis Details¶
A stress analysis is performed by constraining the displacement of the restrained surfaces shown in Figure 4.6.1 and applying a distributed load to the inside of the container as the loaded surface. The Drucker-Prager model is used for the yield function. The analysis control data are shown below.
Analysis Control Data can.cnt¶
# Control File for FISTR
## Analysis Control
!VERSION
3
!SOLUTION, TYPE=NLSTATIC
!WRITE,RESULT
!WRITE,VISUAL
## Solver Control
### Boundary Conditon
!BOUNDARY, GRPID=1
BND0, 3, 3, 0.000000
!BOUNDARY, GRPID=1
BND1, 1, 1, 0.000000
BND1, 2, 2, 0.000000
BND1, 3, 3, 0.000000
!DLOAD, GRPID=1
DL0, S, 1.0
!DLOAD, GRPID=1
DL1, S, 1.0
!DLOAD, GRPID=1
DL2, S, 0.5
### STEP
!STEP, SUBSTEPS=10, CONVERG=1.0e-5
BOUNDARY, 1
LOAD, 1
### Material
!MATERIAL, NAME=M1
!ELASTIC
24000.0, 0.2
!PLASTIC, YIELD=DRUCKER-PRAGER
500.0, 20.0, 0.0
### Solver Setting
!SOLVER,METHOD=CG,PRECOND=1,ITERLOG=NO,TIMELOG=YES
20000, 1
1.0e-8, 1.0, 0.0
## Post Control
!VISUAL,metod=PSR
!surface_num=1
!surface 1
!output_type=VTK
!END
Analysis Procedure¶
Run the FrontISTR command fistr1.
(Run with 4 threads)
Analysis Results¶

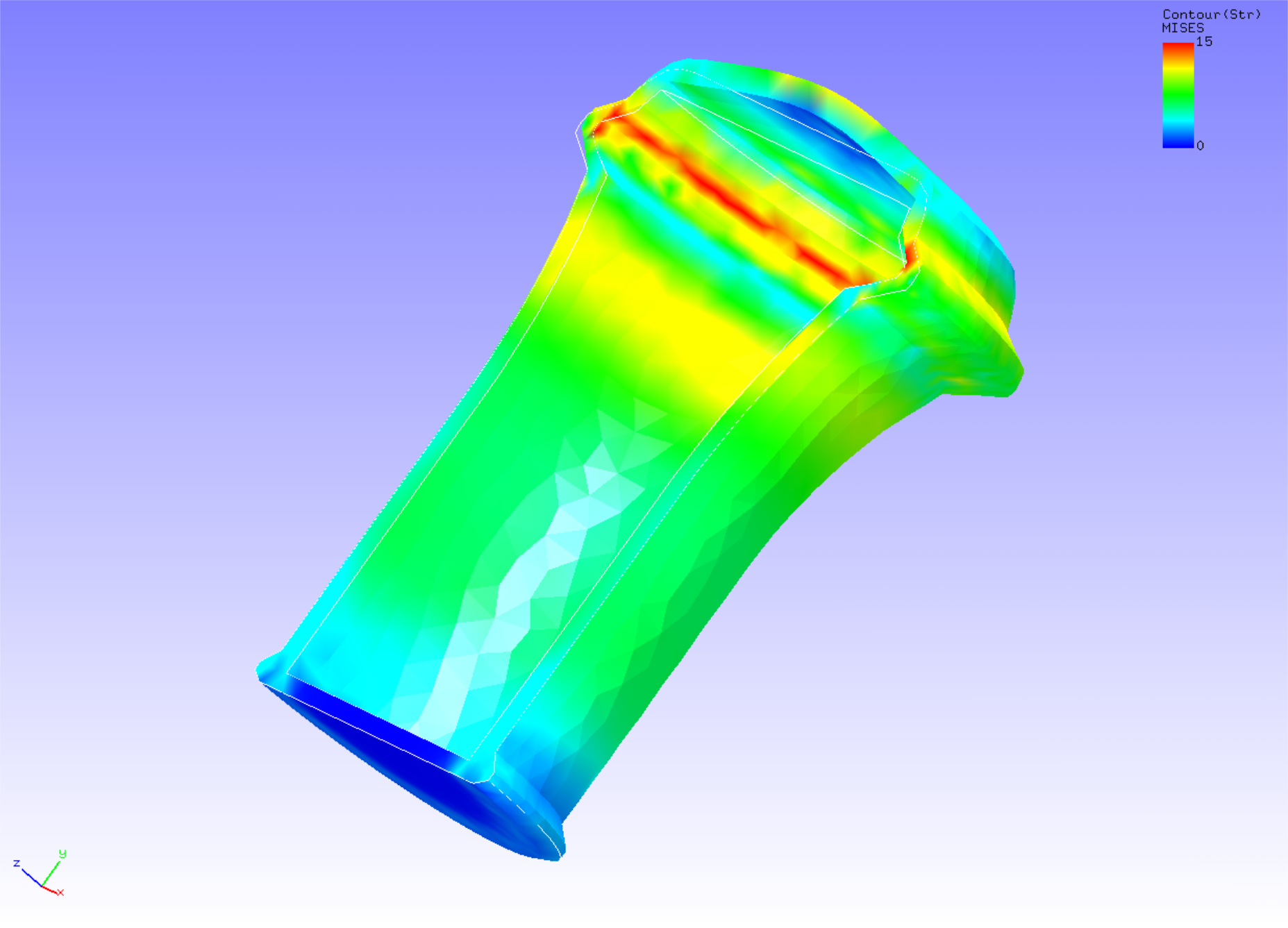

For the analysis results at the 10th substep, a deformed-shape plot with von Mises stress contours was created using REVOCAP_PrePost and is shown in Figure 4.6.3. The deformation scale factor is 30. In addition, part of the analysis result log file is shown below as numerical data from the analysis.
Figure 4.6.3 Analysis results: deformation and von Mises stress
Analysis Result Log 0.log¶
fstr_setup: OK
#### Result step= 0
##### Local Summary @Node :Max/IdMax/Min/IdMin####
//U1 0.0000E+00 1 0.0000E+00 1
//U2 0.0000E+00 1 0.0000E+00 1
//U3 0.0000E+00 1 0.0000E+00 1
//E11 0.0000E+00 1 0.0000E+00 1
//E22 0.0000E+00 1 0.0000E+00 1
//E33 0.0000E+00 1 0.0000E+00 1
//E12 0.0000E+00 1 0.0000E+00 1
//E23 0.0000E+00 1 0.0000E+00 1
//E31 0.0000E+00 1 0.0000E+00 1
//S11 0.0000E+00 1 0.0000E+00 1
//S22 0.0000E+00 1 0.0000E+00 1
//S33 0.0000E+00 1 0.0000E+00 1
//S12 0.0000E+00 1 0.0000E+00 1
//S23 0.0000E+00 1 0.0000E+00 1
//S31 0.0000E+00 1 0.0000E+00 1
//SMS 0.0000E+00 1 0.0000E+00 1
##### Local Summary @Element :Max/IdMax/Min/IdMin####
//E11 0.0000E+00 1 0.0000E+00 1
//E22 0.0000E+00 1 0.0000E+00 1
//E33 0.0000E+00 1 0.0000E+00 1
//E12 0.0000E+00 1 0.0000E+00 1
//E23 0.0000E+00 1 0.0000E+00 1
//E31 0.0000E+00 1 0.0000E+00 1
//S11 0.0000E+00 1 0.0000E+00 1
//S22 0.0000E+00 1 0.0000E+00 1
//S33 0.0000E+00 1 0.0000E+00 1
//S12 0.0000E+00 1 0.0000E+00 1
//S23 0.0000E+00 1 0.0000E+00 1
//S31 0.0000E+00 1 0.0000E+00 1
//SMS 0.0000E+00 1 0.0000E+00 1
##### Global Summary @Node :Max/IdMax/Min/IdMin####
//U1 0.0000E+00 1 0.0000E+00 1
//U2 0.0000E+00 1 0.0000E+00 1
//U3 0.0000E+00 1 0.0000E+00 1
//E11 0.0000E+00 1 0.0000E+00 1
//E22 0.0000E+00 1 0.0000E+00 1
//E33 0.0000E+00 1 0.0000E+00 1
//E12 0.0000E+00 1 0.0000E+00 1
//E23 0.0000E+00 1 0.0000E+00 1
//E31 0.0000E+00 1 0.0000E+00 1
//S11 0.0000E+00 1 0.0000E+00 1
//S22 0.0000E+00 1 0.0000E+00 1
//S33 0.0000E+00 1 0.0000E+00 1
//S12 0.0000E+00 1 0.0000E+00 1
//S23 0.0000E+00 1 0.0000E+00 1
//S31 0.0000E+00 1 0.0000E+00 1
//SMS 0.0000E+00 1 0.0000E+00 1
##### Global Summary @Element :Max/IdMax/Min/IdMin####
//E11 0.0000E+00 1 0.0000E+00 1
//E22 0.0000E+00 1 0.0000E+00 1
//E33 0.0000E+00 1 0.0000E+00 1
//E12 0.0000E+00 1 0.0000E+00 1
//E23 0.0000E+00 1 0.0000E+00 1
//E31 0.0000E+00 1 0.0000E+00 1
//S11 0.0000E+00 1 0.0000E+00 1
//S22 0.0000E+00 1 0.0000E+00 1
//S33 0.0000E+00 1 0.0000E+00 1
//S12 0.0000E+00 1 0.0000E+00 1
//S23 0.0000E+00 1 0.0000E+00 1
//S31 0.0000E+00 1 0.0000E+00 1
//SMS 0.0000E+00 1 0.0000E+00 1
...
#### Result step= 10
##### Local Summary @Node :Max/IdMax/Min/IdMin####
//U1 1.6169E+00 1600 -1.6123E+00 11901
//U2 1.9281E+01 6877 -4.5296E-01 7096
//U3 1.6087E+00 7016 -1.5107E+00 6934
//E11 9.9108E-04 11242 -6.5834E-04 1404
//E22 1.5025E-03 13972 -5.4245E-04 2367
//E33 9.8320E-04 6833 -6.4744E-04 7000
//E12 1.6822E-03 2698 -1.7175E-03 11906
//E23 1.7082E-03 6749 -1.4469E-03 13509
//E31 1.2090E-03 12475 -1.1181E-03 11342
//S11 2.7781E+01 1086 -1.9439E+01 2363
//S22 3.7876E+01 13972 -1.4556E+01 2367
//S33 2.7335E+01 1086 -1.9745E+01 13082
//S12 1.6817E+01 2698 -1.7170E+01 11906
//S23 1.7077E+01 6749 -1.4463E+01 13509
//S31 1.2086E+01 12475 -1.1178E+01 11342
//SMS 3.7448E+01 2834 2.7593E-04 7333
##### Local Summary @Element :Max/IdMax/Min/IdMin####
//E11 5.8557E-04 6613 -4.0802E-04 6416
//E22 1.1391E-03 7144 -3.1424E-04 6613
//E33 6.9233E-04 6130 -4.5897E-04 6222
//E12 1.1076E-03 165 -1.1101E-03 5196
//E23 1.4338E-03 6215 -9.2107E-04 6176
//E31 9.6618E-04 5618 -7.4939E-04 4704
//S11 1.7994E+01 6613 -1.2254E+01 6224
//S22 2.7863E+01 7144 -7.3017E+00 24
//S33 1.9725E+01 6613 -1.3385E+01 6222
//S12 1.1072E+01 165 -1.1097E+01 5196
//S23 1.4332E+01 6215 -9.2080E+00 6176
//S31 9.6603E+00 5618 -7.4918E+00 4704
//SMS 3.3151E+01 5619 3.3306E-04 2665
##### Global Summary @Node :Max/IdMax/Min/IdMin####
//U1 1.6169E+00 1600 -1.6123E+00 11901
//U2 1.9281E+01 6877 -4.5296E-01 7096
//U3 1.6087E+00 7016 -1.5107E+00 6934
//E11 9.9108E-04 11242 -6.5834E-04 1404
//E22 1.5025E-03 13972 -5.4245E-04 2367
//E33 9.8320E-04 6833 -6.4744E-04 7000
//E12 1.6822E-03 2698 -1.7175E-03 11906
//E23 1.7082E-03 6749 -1.4469E-03 13509
//E31 1.2090E-03 12475 -1.1181E-03 11342
//S11 2.7781E+01 1086 -1.9439E+01 2363
//S22 3.7876E+01 13972 -1.4556E+01 2367
//S33 2.7335E+01 1086 -1.9745E+01 13082
//S12 1.6817E+01 2698 -1.7170E+01 11906
//S23 1.7077E+01 6749 -1.4463E+01 13509
//S31 1.2086E+01 12475 -1.1178E+01 11342
//SMS 3.7448E+01 2834 2.7593E-04 7333
##### Global Summary @Element :Max/IdMax/Min/IdMin####
//E11 5.8557E-04 6613 -4.0802E-04 6416
//E22 1.1391E-03 7144 -3.1424E-04 6613
//E33 6.9233E-04 6130 -4.5897E-04 6222
//E12 1.1076E-03 165 -1.1101E-03 5196
//E23 1.4338E-03 6215 -9.2107E-04 6176
//E31 9.6618E-04 5618 -7.4939E-04 4704
//S11 1.7994E+01 6613 -1.2254E+01 6224
//S22 2.7863E+01 7144 -7.3017E+00 24
//S33 1.9725E+01 6613 -1.3385E+01 6222
//S12 1.1072E+01 165 -1.1097E+01 5196
//S23 1.4332E+01 6215 -9.2080E+00 6176
//S31 9.6603E+00 5618 -7.4918E+00 4704
//SMS 3.3151E+01 5619 3.3306E-04 2665
